FM-Z1921RGBA-SH

High density,high contrast,apply to P3-P5

FEATURES

1.Bending pins inside,waterproof and high reliability;
2.White leadframe, high brightness, low power consumption, matt finish to reduce reflection;
3.Low pins high frame,ease in glue potting and mask design.

PRODUCT PARAMETERS

Product Name	Color	IF(mA) TEST	λd(nm) Typ	Iv(mcd) Typ	Vf(V) Typ	View angle (deg.)
FM-Z1921RGBA-SH 2.15×2.05×1.9		15	622	510	2.1	110
		8	522	807	2.7	110
		5	472	110	2.7	110

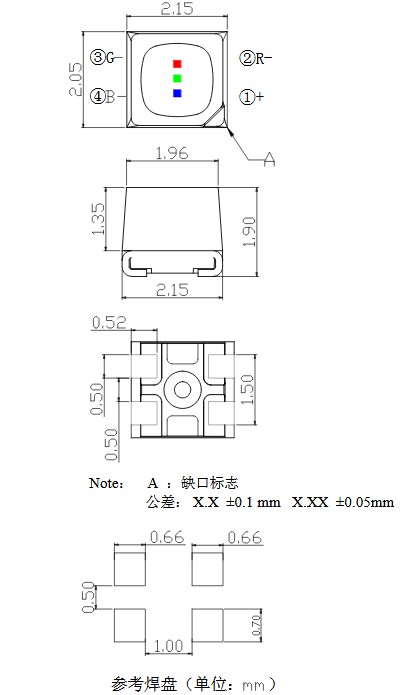

DIMENSIONS/UNIT(mm)
