IMD-F15F

FEATURES

①Integrated Matrix Device (IMD) solution, pixel pitch 1.56, flip chip technology, energy saving, more amazing image display.

②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

③High precision cutting technology, solve the problems of warping and mixed light in display, achieve to the seamless combination.

④High brightness, high contrast, no modular color difference in whole screen, 100% tested and binning, better color consistency.

PRODUCT PARAMETERS

Product Name	Color	IF(mA) TEST	λd(nm) Typ	Iv(mcd) Typ	Vf(V) Typ	View angle (deg.)
IMD-F15F 2.82×2.82×0.85		5	620	50	1.9	120
		2	530	54	2.5	120
		2	4708		2.6	120

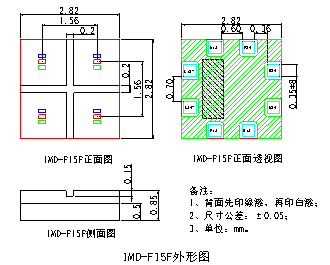

DIMENSIONS/UNIT(mm)
